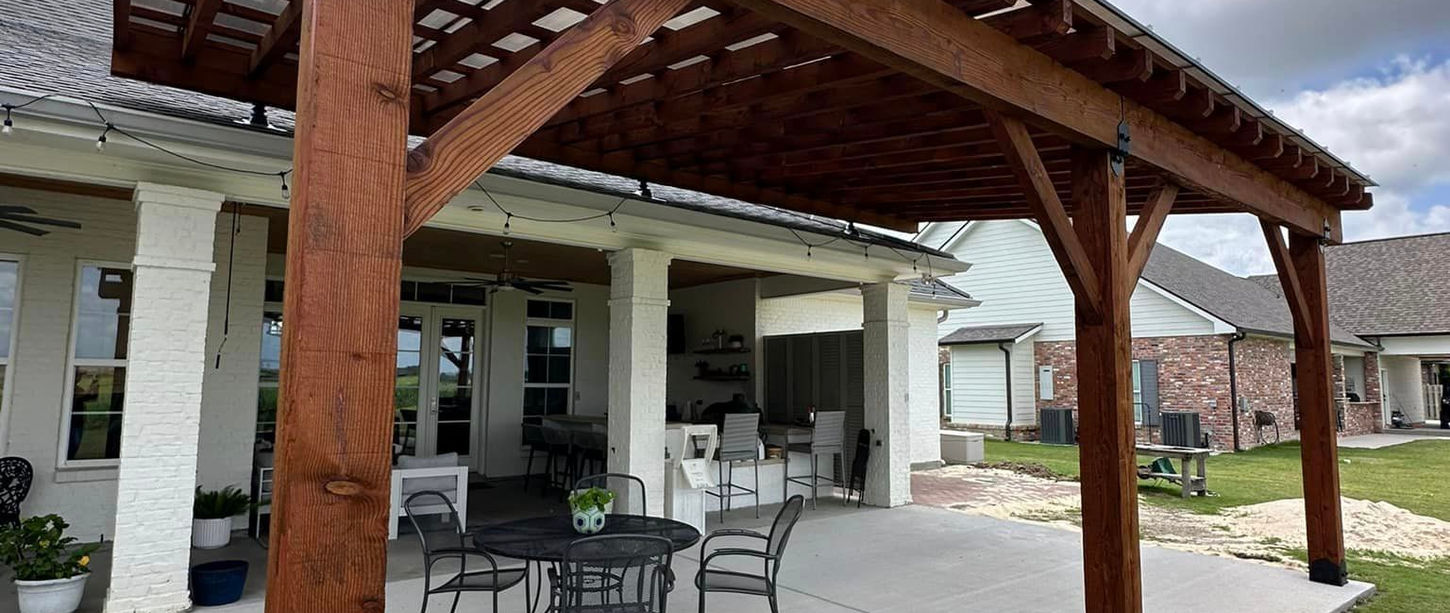

Esplanade Patio Cover

The Esplanade Patio Cover is an affordable option to provide shade and protection from the elements and can be used to cover your back porch or patio area.

Our patio covers are constructed with a gradual pitch to allow gentle rain runoff. This model comes equipped with a galvalume roof.

Available in Western Red Cedar or Douglas Fir.

Skylift attachment option available

This option can be attached with Skylift hardware. This will eliminate two posts for added space. For more information click here

Included:

  • 8″ x 8″ post notched with 4″ x 10″ headers
  • 2″ x  8″ rafters with 2″ x 4″ runner boards (24″ on center)
  • 2/12 pitch with 26 gauge galvalume metal roof
  • Wood stained and sealed offsite
  • Delivery & professional installation

Optional:

  • Color Metal Roof

Standard Sizes & Pricing

Design above displays a 16′ x 16′ build

Stain Options

Burnt Hickory, Natural Cedar, Pecan, Dark Walnut, Redwood

Questions? Check out our FAQ section here

Carrollton Patio Cover

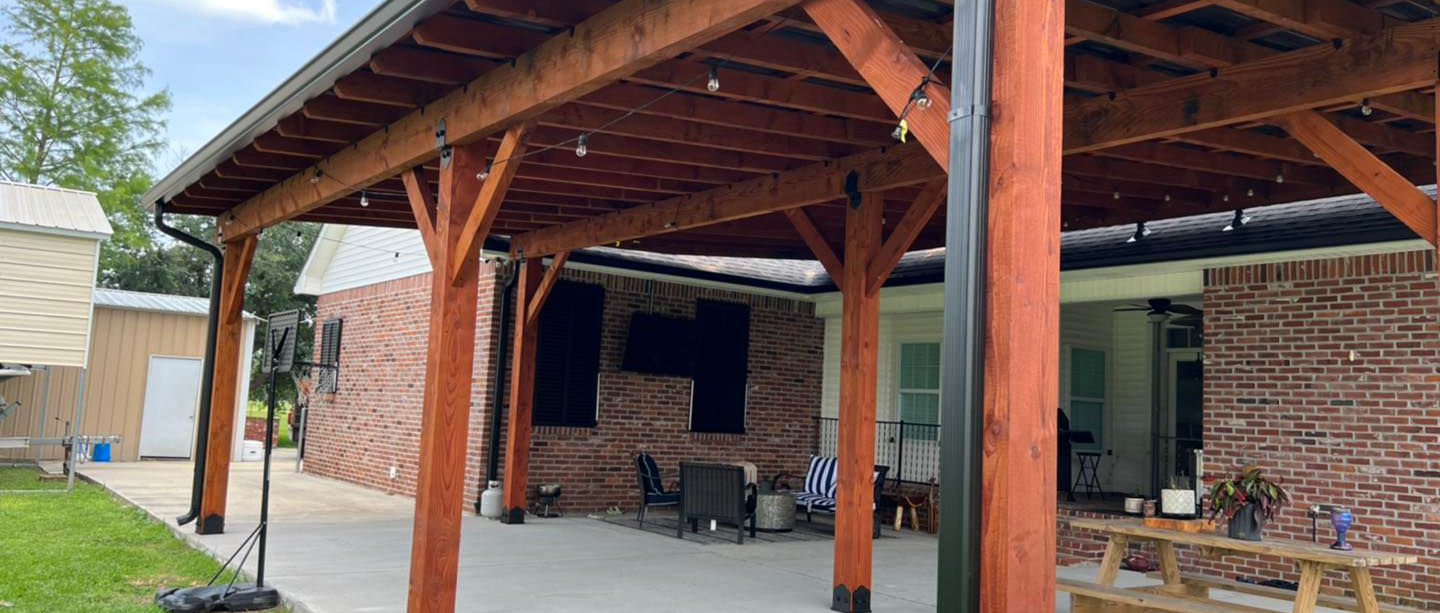

The Carrollton Patio Cover is a step up from the Esplanade Patio Cover. This option is upgraded with a beautiful colored roof of your choice which is turned down for viewing.

With fifteen colors available, you can easily choose a metal roof to match your existing decor.

Our patio covers are constructed with a gradual pitch to allow gentle rain runoff.

Available in Western Red Cedar or Douglas Fir.

Skylift attachment option available

This option can be attached with Skylift hardware. This will eliminate two post for added space. For more information click heree

Included:

  • 8″ x 8″ post notched with 4″ x 10″ headers
  • 2″ x 8″ rafters with 2″ x 4″ runner boards (24″ on-center)
  • 2/12 pitch with 26 gauge colored metal roof turned down
  • Wood stained and sealed offsite
  • Delivery & professional installation



Standard Sizes & Pricing

Design above displays a 16′ x 16′ build

Stain Options

Burnt Hickory, Natural Cedar, Pecan, Dark Walnut, Redwood

Questions? Check out our FAQ section here

Prytania Patio Cover

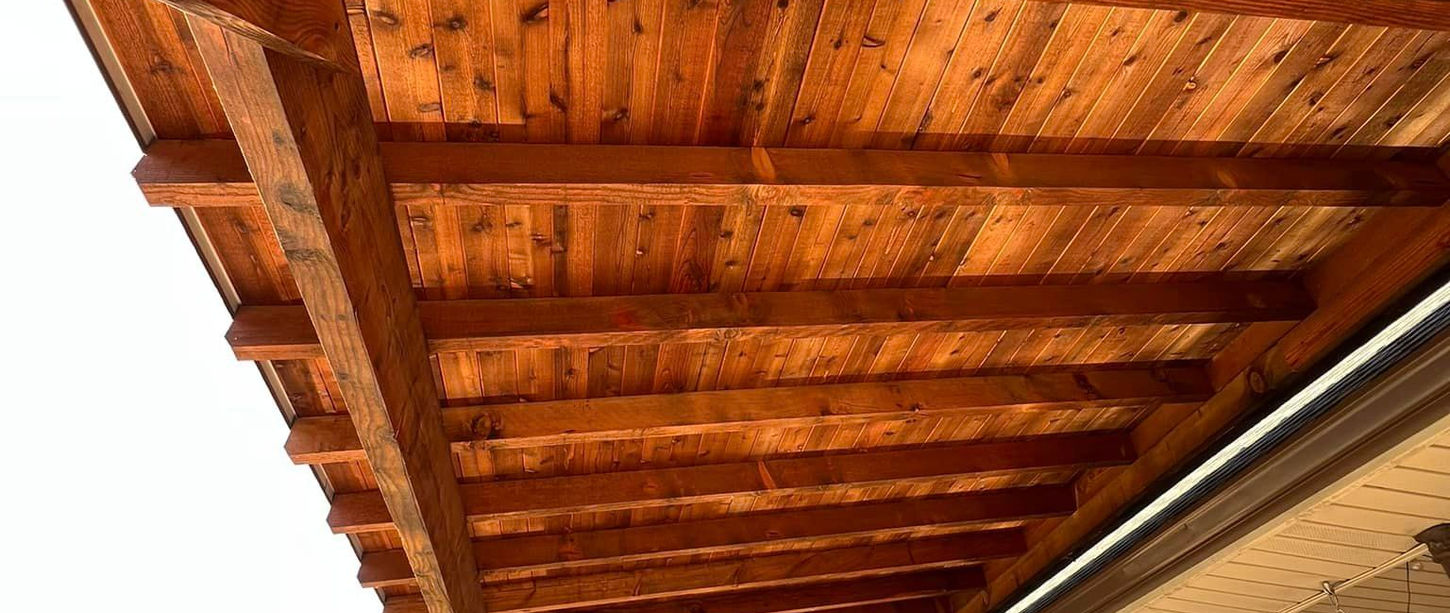

What sets the Prytania Patio Cover apart from the Esplanade and Carrollton is the ability to view the exposed tongue and groove decking from underneath. We also complete this design with a colored metal roof. With fifteen colors available, you can easily choose a metal roof to match your home’s exterior design.

Our patio covers are constructed with a gradual pitch to allow gentle rain runoff.

Available in Western Red Cedar or Douglas Fir.

Skylift attachment available possible

This option can be attached with Skylift hardware. This will eliminate two post for added space. For more information click here

Included:

  • 8″ x 8″ post notched with 4″ x 10″ headers
  • 2″ x  8″ rafters (24″ on-center)
  • Tongue and Groove decking
  • 2/12 pitch with 26 gauge colored metal roof
  • Wood stained and sealed offsite
  • Delivery & professional installation

Standard Sizes

Design above displays a 16′ x 16′ build

Stain Options

Burnt Hickory, Natural Cedar, Pecan, Dark Walnut, Redwood

Questions? Check out our FAQ section here

Patio Cover Attached

All of our patio covers can be attached to your home provided your home can facilitate the attachment.

Sizes and Pricing

Estimate will be provided after the area has been inspected by one of our installers.

Stain Options

Burnt Hickory, Natural Cedar, Pecan, Dark Walnut, Redwood

Design above displays a 16′ x 16′ attached build

Stain Options

Burnt Hickory, Natural Cedar, Pecan, Dark Walnut, Redwood

Questions? Check out our FAQ section here

Skylift Patio Cover

We offer a Skylift roof attachment for our patio covers! The Skylift attachment provides lift for your pergola and eliminates two posts for added space.

More technical information about Skylift hardware can be found here

Skylift Mounting Hardware

A more stable, simplified tie-in for outdoor structures. Skylift hardware can be used for almost all of our Pergolas and Patio covers.

Sizes and Pricing

Estimate will be provided after the area has been inspected by one of our installers.

Design above displays a 16′ x 20′ attached build

Stain Options

Burnt Hickory, Natural Cedar, Pecan, Dark Walnut, Redwood

Questions? Check out our FAQ section here

Standard Installation | Post In-Ground

Pricing assumes as in ground installation. We will set post 24"-36" in ground with concrete and rebar. Certain models and sizes require this installation.

Optional Installation | Anchored

Post attached to concreate- (There is an additional charge for this option) We will attach posts to concrete using post anchor brackets. The brackets will be covered with a custom made wood trim. Certain models and sizes will require additional options.

Friendly Reminder: Each and every option at Outdoor Cedar Solutions can be customized to meet your specific need.
